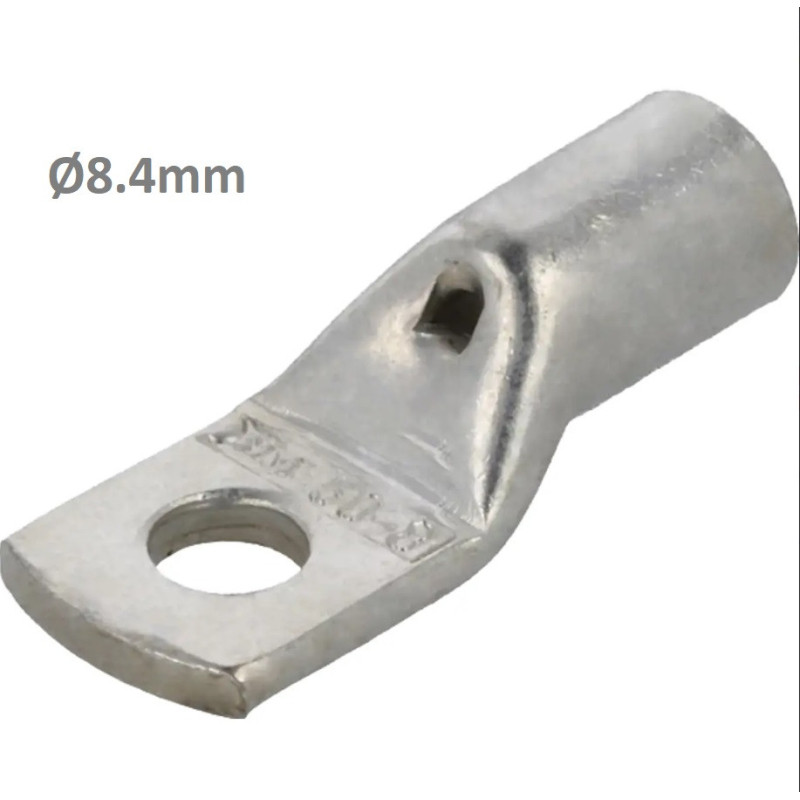

Non-Insulated Ring Terminal 35..50mm² M8 Ø8.4mm

The 35–50mm² M8 non-insulated ring terminal is designed for terminating large-section electrical cables, providing a firm, secure and low-resistance connection using a screw, stud or busbar.

This type of terminal is commonly used in installations where a strong and reliable electrical connection is required, such as DC power systems, batteries, inverters, chargers, electrical panels, grounding connections, solar installations, industrial equipment, automotive applications, caravans, marine installations and radio communication systems.

As this is a non-insulated terminal, it should be crimped directly onto the cable using a suitable tool for the cable size. After crimping, heat-shrink tubing or another suitable insulation method may be applied for additional mechanical and electrical protection.

Main features

• Non-insulated ring terminal
• For 35 to 50mm² cables
• Hole for M8 screw or stud
• Hole diameter: 8.4mm
• Crimp connection
• Suitable for power electrical connections
• Suitable for DC and AC installations
• Provides firm fixing with screw, stud or nut
• Ideal for battery, grounding, power and busbar connections
• Good mechanical and electrical resistance
• Can be protected with heat-shrink tubing after crimping

Recommended applications

• Large-section power cables
• Battery connections
• Grounding connections
• Electrical busbars
• Inverters and chargers
• Power supplies
• Electrical panels
• Solar installations and DC systems
• Automotive, marine and caravan applications
• Industrial equipment
• Radio communication equipment

Installation note

For a safe and reliable connection, the terminal should be crimped using a suitable tool for 35 to 50mm² cables. Always check that the cable size, screw diameter and installation current are compatible with the terminal being used.
