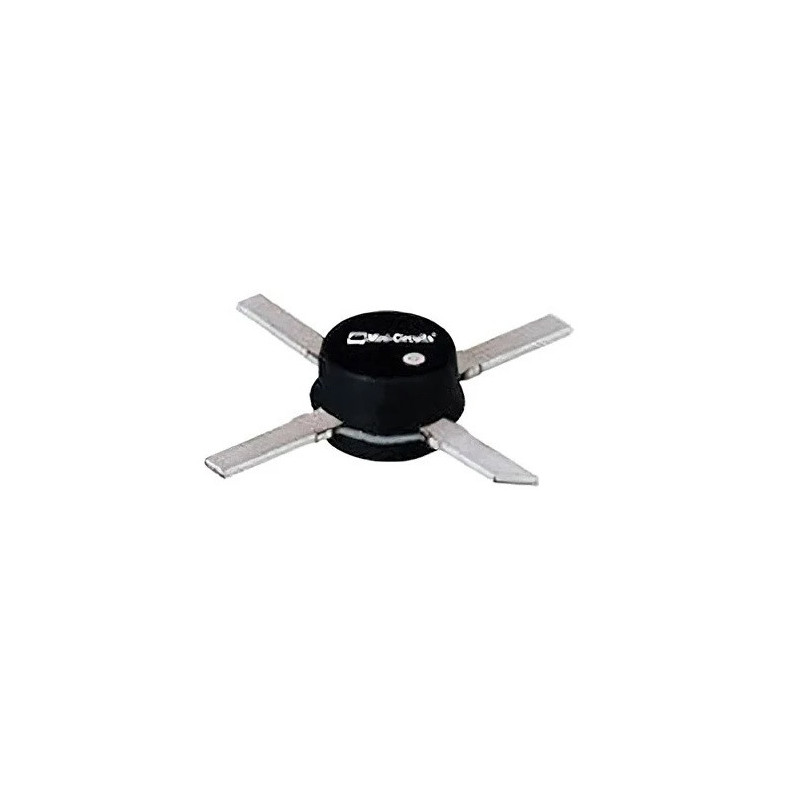

ERA-3+ DC-3GHz SMD MMIC RF Amplifier Mini-Circuits

The ERA-3+ is a wideband MMIC / monolithic RF amplifier from Mini-Circuits, designed for applications requiring a compact, stable gain stage with good radio frequency performance.

With an operating range of DC to 3GHz, typical gain of 16.4dB, 2.9dB noise figure, 10.5dBm P1dB compression point and 24dBm OIP3, this component is suitable for reception circuits, signal distribution, CATV, communication systems, test equipment, RF instrumentation and amateur radio projects.

The ERA-3+ uses GaAs InGaP / InGaP HBT technology and offers repeatable performance from lot to lot, making it a practical solution for RF gain stages on compact boards. The Micro-X package and SMD/SMT mounting allow integration into high-frequency printed circuit boards.

This component requires correct biasing, including DC blocking capacitors and an RF choke / suitable bias circuit, according to the manufacturer’s datasheet.

Main features

MMIC / monolithic RF amplifier
Manufacturer / brand: Mini-Circuits
Family / series: ERA
Part number: ERA-3+
Category: RF Amplifier
Type: CATV / RF wideband amplifier
Number of channels: 1 channel
Operating frequency: DC to 3GHz
Typical gain: 16.4dB
Noise figure NF: 2.9dB
P1dB / compression point: 10.5dBm
OIP3 / third-order intercept: 24dBm
Device operating voltage: 3.2V
Operating current: 35mA
Input return loss: 18dB
Isolation: 24dB
Power dissipation: 330mW
Technology: GaAs InGaP / InGaP HBT
Mounting: SMD / SMT
Package: Micro-X
Case style: VV105
Terminals: RF IN, RF OUT/DC IN and GND
Minimum operating temperature: -45°C
Maximum operating temperature: +85°C
RoHS: Yes
Active RF component
Suitable for wideband RF applications and compact gain stages

Recommended applications

Wideband RF circuits
Small-signal amplifier stages
CATV and signal distribution
Radio reception
Communication equipment
RF instrumentation
Test and measurement equipment
Wireless and WLAN systems
Amateur radio projects
RF preamplifiers
Converters, modules and receiver circuits
Applications requiring compact RF gain up to 3GHz

Important note

Before use, always confirm the operating frequency, required gain, bias voltage/current, impedance, input power, thermal dissipation, PCB layout and compatibility with the original circuit. The ERA-3+ is an SMD RF component and should be used with proper high-frequency layout practices, suitable ground plane, DC blocking capacitors and a bias circuit as recommended by the manufacturer. Always respect the pinout, component orientation and absolute maximum ratings.
