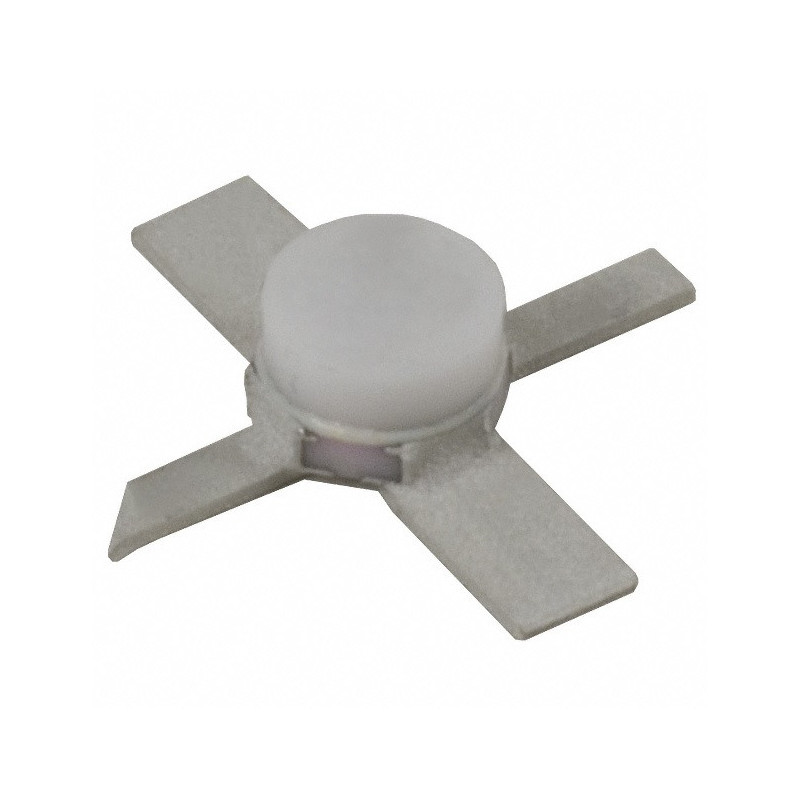

NBB-310-T1 Amplifier 0Hz to 12GHz Qorvo
€25.50
Wideband RF amplifier Qorvo NBB-310-T1, suitable for applications such as LMDS, VSAT, WLAN, UNII, DWDM, and PTP/PMP links. It operates from 0Hz to 12GHz, with 11 to 11.5 dB gain, 14.5 dBm P1dB, 4.9 dB noise figure, 4.4V to 4.9V supply, and a 4-Micro-X package for surface mounting.
Security policy
Delivery policy
The Qorvo NBB-310-T1 is a wideband RF amplifier designed for radio-frequency projects and equipment that require extremely broad frequency coverage together with a compact surface-mount format. The product listing directly associates this model with applications such as LMDS, VSAT, WLAN, UNII, DWDM, and point-to-point / point-to-multipoint systems.
This model operates across 0Hz to 12GHz, providing 11 dB to 11.5 dB gain, 14.5 dBm P1dB compression point, and a 4.9 dB noise figure, making it suitable for RF amplification stages in compatible applications within this range.
Electrically, it works with a 4.4V to 4.9V supply voltage and 50 mA current consumption. It is supplied in a 4-Micro-X package and intended for surface mounting, making it suitable for integration into compact RF boards and modules.
Features:
- Wideband RF amplifier
- Brand: Qorvo
- Model: NBB-310-T1
- Frequency range: 0Hz to 12GHz
- Gain: 11 dB to 11.5 dB
- P1dB compression point: 14.5 dBm
- Noise figure: 4.9 dB
- Applications: LMDS, VSAT, WLAN, UNII, DWDM, PTP, PMP
- Supply voltage: 4.4V to 4.9V
- Supply current: 50 mA
- Mounting type: surface mount
- Package: 4-Micro-X
231232
Data sheet
- Local do artigo na loja
- EL0017
Specific References
- MPN
- NBB-310-T1
New
