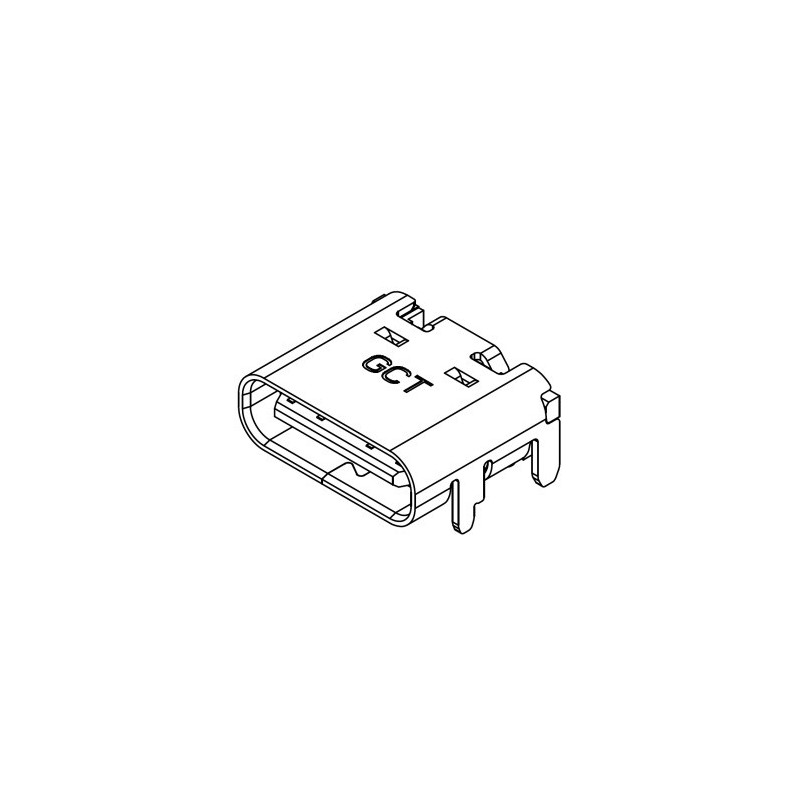

The GCT USB4105-GF-A is a USB Type-C receptacle from the USB4105 series, designed for USB 2.0 applications on printed circuit boards.

This model uses horizontal SMD mounting, also described as right angle, with side entry and PCB top mount positioning. The metallic shell uses through-hole stakes, providing improved mechanical retention compared with purely SMD connectors.

The product configuration provides 16 functional contacts, while it is also commercially listed as a 24-position connector, 16 plus 8 dummy. It is suitable for equipment using the USB-C physical interface but requiring only USB 2.0 communication, compatible power input or data connection.

The GCT specification lists a collective current rating of 5A on VBUS pins, 6.25A on GND pins, 1.25A on VCONN and 0.25A per pin on the remaining contacts. Voltage rating is 48V DC and listed power rating is 240W, always depending on the complete circuit, USB-C implementation, cable, power supply and controller used.

With stainless steel shell, black LCP UL94V-0 housing, copper alloy contacts and Gold Flash contact plating, the USB4105-GF-A is suitable for compact electronics, portable devices, development boards, modules, industrial products and compatible PCB repair.

Main features

USB-C female receptacle connector
Manufacturer / brand: GCT
Reference: USB4105-GF-A
Series: USB4105
Connector type: USB-C / USB Type-C
USB version: USB 2.0
Gender: receptacle / female
Number of functional contacts: 16
Commercial indication: 24 positions, 16 plus 8 dummy
Mounting type: horizontal SMD / right angle
PCB mounting position: top mount
Entry type: side entry
Shell retention: through-hole
Features: board guide and solder retention tab
Listed profile: 3.31mm
Body length: 7.35mm
VBUS current rating: 5A collective
GND current rating: 6.25A collective
VCONN current rating: 1.25A
Other pin current rating: 0.25A per pin
Voltage rating: 48V DC
Power rating: 240W
Mechanical durability: 20000 cycles
Mating force: 5N to 20N
Unmating force after testing: 6N to 20N
Initial contact resistance: 40 milliohm maximum
Contact resistance after testing: 50 milliohm maximum
Insulation resistance: 100 megaohm minimum
Operating temperature: -40°C to 85°C
Insulator material: black LCP, UL94V-0
Shell material: stainless steel
Contact material: copper alloy
Contact plating: Gold Flash
Termination: solder
Soldering process: lead-free reflow
Maximum peak reflow temperature: 255°C
Commercial packaging: tape and reel, cut tape or Digi-Reel, depending on supplier

Recommended applications

Electronic boards with USB-C interface
USB 2.0 applications
Portable equipment
Compatible charging and power modules
Development boards
Compact electronics projects
IoT devices
Industrial products with USB-C connection
Repair of boards with compatible USB-C connector
Replacement of equivalent USB-C connectors
Projects requiring horizontal SMD USB-C connector with through-hole shell retention

Important note

Before purchase, always confirm the complete reference, PCB footprint, mounting position, connector orientation, number of contacts, pin position, mechanical retention points, profile height, PCB drawing compatibility and electrical circuit requirements.

Although it uses the USB-C format, this connector is intended for USB 2.0. Compatibility with USB 3.x / SuperSpeed connections should not be assumed without confirming the circuit and the correct connector.

The listed 240W power rating refers to the connector capacity under specified conditions. To use high voltage and current over USB-C, the complete system must be compatible, including control circuit, CC configuration, power supply, cable, protection, thermal design and applicable standards.

This item corresponds only to the GCT USB4105-GF-A connector. PCB, USB-C cable, USB controller, Power Delivery controller, external components, solder and accessories are not included unless expressly stated otherwise.
