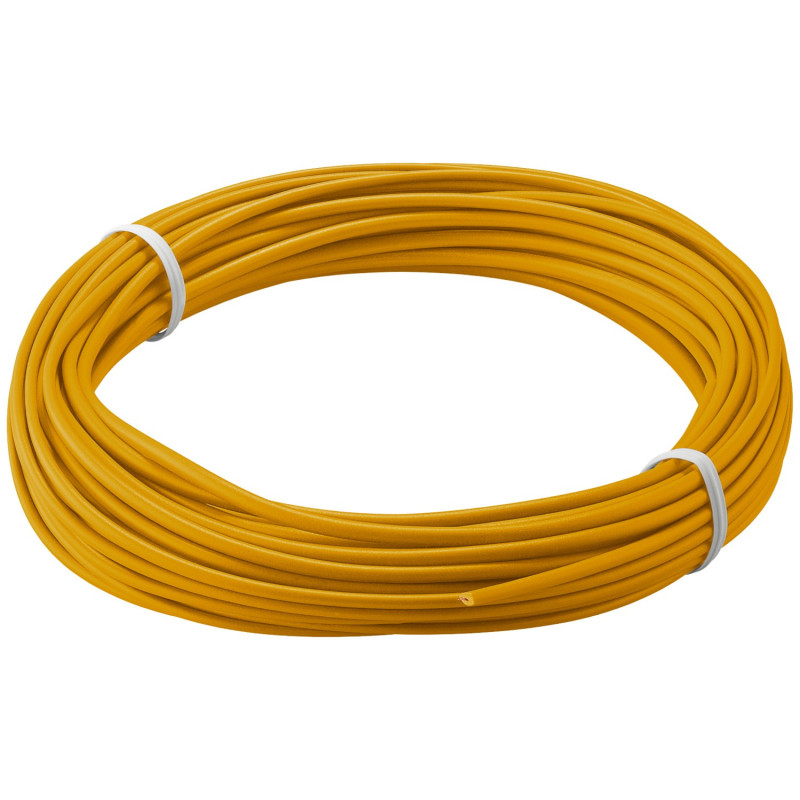

The Goobay 55043 is a flexible, insulated, single-core wire designed for connections in compatible electrical equipment and assemblies.

Its conductor consists of 18 copper strands, each 0.1 mm in diameter, with a nominal cross-section of 0.14 mm². The orange PVC insulation covers the conductor and makes it visually distinguishable from wires of other colours within an assembly.

Wentronic lists applications including appliance wiring, measuring instruments and model making, including model railways. The free ends can be prepared for connection using wire-end ferrules, spring terminals or screw terminals suitable for this conductor size. Supplied as a 10-metre roll.

Main features

Brand: Goobay
Reference: 55043
EAN: 4040849550430
Product type: insulated flexible copper wire
Number of cores: 1
Conductor construction: stranded
Conductor material: copper
Nominal conductor cross-section: 0.14 mm²
Manufacturer-listed wire gauge: AWG 26
Conductor stranding: 18 × 0.1 mm
Insulation material: PVC
Colour: orange
Outer diameter: 1.1 ± 0.1 mm
Nominal length: 10 m
Ends: free, without connectors
Sales unit: 1 roll of 10 m.

Recommended applications

Wiring of electrical equipment and assemblies, connections in measuring instruments, and model-making projects, including model railways. Connection using ferrules and terminals suitable for the conductor cross-section.

Important note

Before use, check the required conductor cross-section, circuit current, operating voltage, connection length and compatibility of the terminals used.

This item consists of one 10-metre roll of orange wire, without fitted connectors. Ferrules, terminals and tools are not included.
