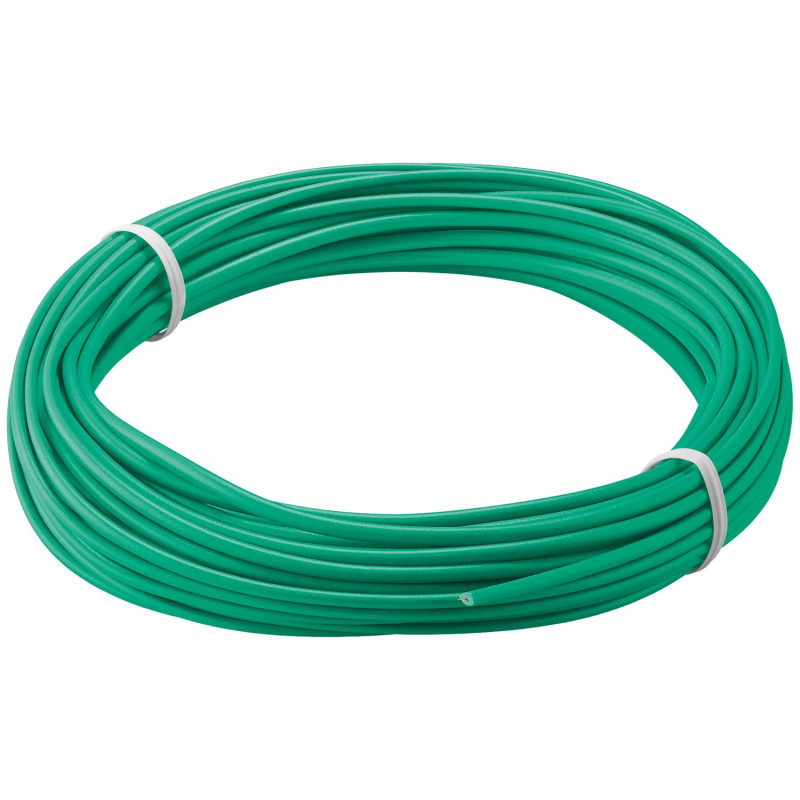

Goobay 55042 Insulated Stranded Copper Wire 0.14 mm² Green — 10 m Roll
€1.75
Goobay 55042 flexible copper wire with 0.14 mm² conductor cross-section, green PVC insulation and supplied as a 10-metre roll. Features 18 × 0.1 mm copper strands, with free ends and no fitted connectors.
Security policy
Delivery policy
The Goobay 55042 is an insulated single-core wire for electrical equipment and assemblies. It features a stranded copper conductor, a nominal cross-section of 0.14 mm² and an outer diameter of 1.1 ± 0.1 mm.
Its flexible construction allows connections using wire-end ferrules, spring terminals or screw terminals suitable for the conductor cross-section. The manufacturer lists applications in appliances, measuring instruments and model making, including model railways.
Main features
Brand: Goobay
Reference: 55042
EAN: 4040849550423
Product type: insulated flexible copper wire
Number of cores: 1
Conductor material: copper
Conductor construction: stranded
Nominal conductor cross-section: 0.14 mm²
Manufacturer-listed wire gauge: AWG 26
Conductor stranding: 18 × 0.1 mm
Insulation material: PVC
Colour: green
Outer diameter: 1.1 ± 0.1 mm
Nominal length: 10 m
Ends: free, without connectors
Sales unit: 1 roll of 10 m.
Recommended applications
Wiring of appliances and electrical assemblies, connections in measuring instruments, and model-making projects, including model railways.
Important note
Before use, check the required conductor cross-section, the circuit’s electrical requirements and terminal compatibility.
