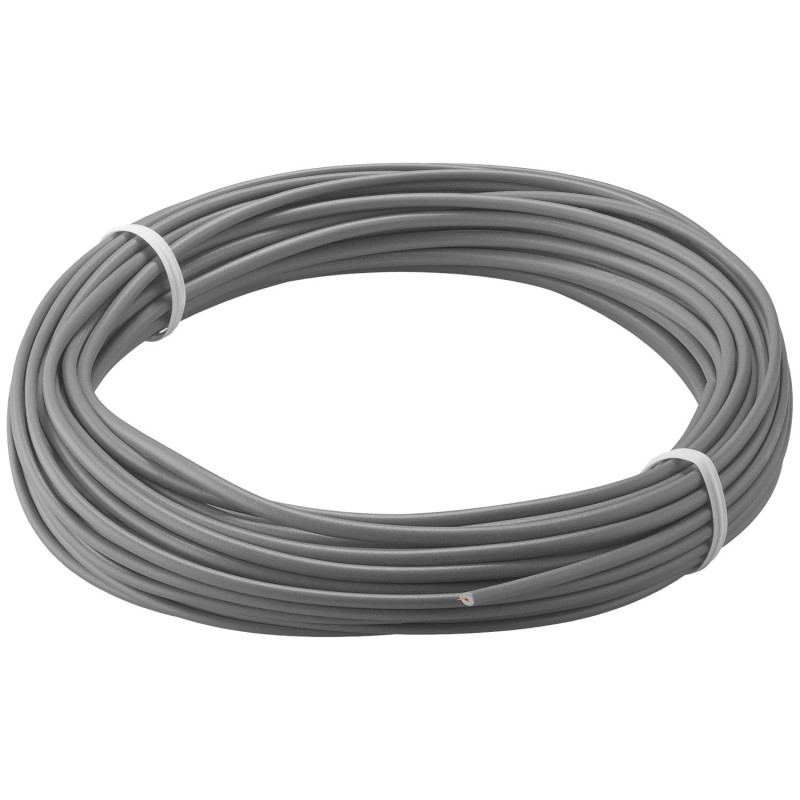

The Goobay 55047 is a flexible, insulated, single-core copper wire designed for connections in compatible electrical equipment and assemblies.

Its conductor consists of 18 copper strands, each 0.1 mm in diameter, with a nominal cross-section of 0.14 mm², identified by the manufacturer as AWG 26. It features grey PVC insulation and an outer diameter of 1.1 ± 0.1 mm.

Wentronic lists applications including appliance wiring, measuring instruments and model making, including model railways. The free ends can be prepared for connection using wire-end ferrules, spring terminals or screw terminals suitable for this conductor size.

The product is supplied as a 10-metre roll, without fitted connectors.

Main features

Brand: Goobay
Reference: 55047
EAN: 4040849550478
Product type: insulated flexible copper wire
Number of cores: 1
Conductor construction: stranded
Conductor material: copper
Nominal conductor cross-section: 0.14 mm²
Manufacturer-listed wire gauge: AWG 26
Conductor stranding: 18 × 0.1 mm
Insulation material: PVC
Colour: grey
Outer diameter: 1.1 ± 0.1 mm
Nominal length: 10 m
Ends: free, without connectors
Sales unit: 1 roll of 10 m.

Recommended applications

Wiring of electrical equipment and assemblies, connections in measuring instruments, and model-making projects, including model railways. Use with ferrules and terminals suitable for the conductor cross-section.

Important note

Before use, check the required conductor cross-section, circuit current, operating voltage, connection length and compatibility of the terminals used.

This item consists of one 10-metre roll of grey wire, without fitted connectors.
