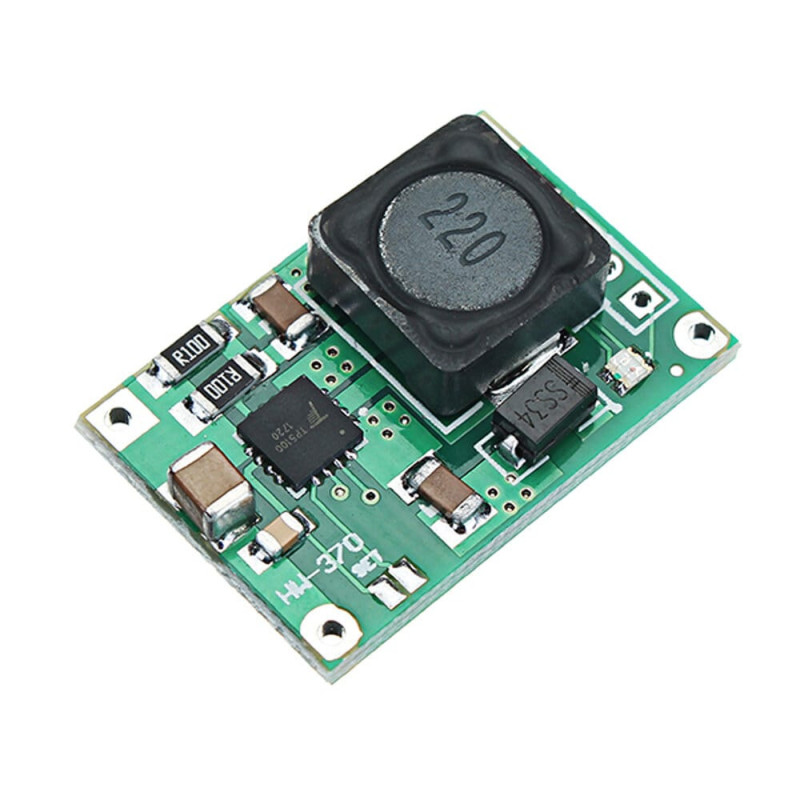

TP5100 1S/2S, 2A Lithium battery charge module

The TP5100 is a single-cell 8.4V lithium battery charge management chip with a dual 4.2V switch. Its ultra-compact QFN16 package and simple external circuitry make it ideal for portable devices and high-current charge management applications. It also features input overcurrent, undervoltage, overtemperature, and short-circuit protection, battery temperature monitoring, and battery reverse protection. The TP5100 offers a wide input voltage range of 5V to 18V, dual battery trickle charging in precharge, constant current, three-phase constant voltage, and precharge trickle current via external resistor adjustment, and a maximum charging current of up to 2A. Its 400kHz switching frequency allows for the use of a smaller external Suo device, while maintaining lower heat generation during high-current charging.

Static input supply voltage (VlN): 20V

BAI: -8.4V-20V

BAT Short-Circuit Duration: Continuous

Operating environment Temperature range: -40 ℃ -85 ℃

Storage temperature range: -65 ℃ - 125 ℃

Double 8.4v / 4.2v lithium rechargeable single

Programmable charge current 0.1A-2A

Programmable steady precharge current 10% -100%

Wide operating voltage, maximum reach 18V

Red and green LED charge status indicator

Chip temperature protection, overcurrent protection, undervoltage protection

Battery temperature protection, reverse battery shutdown, short circuit protection

Switching frequency 400Khz, usable inductance 20uH and more

PWR_ON Power battery for switching control

Application:

Portable equipment, various chargers

Smartphone, FDA, mobile cellular telephone

MP4,MP5 players, tablets

H.M.

Power Tools

walkie-talkie
