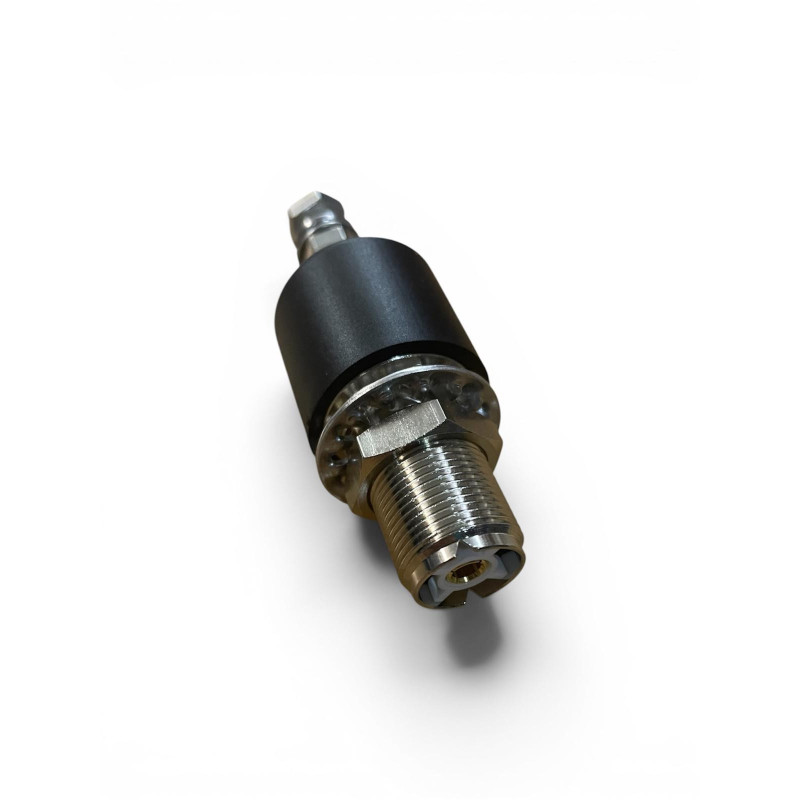

Grazioli CNUHF01 Replacement UHF Connector

Grazioli replacement UHF connector designed for use with selected Grazioli antenna models. Unlike standard commercial SO-239 type connectors commonly used by many manufacturers, this connector was specifically designed by Grazioli to provide improved reliability, a true 50 Ohm impedance and operation up to 500 MHz.

The connector body is made from CW614N nickel-plated brass, while the centre pin is plated with 24K gold to help prevent oxidation. It also features a 4-fin insulator that maintains proper centring and elasticity, helping to reduce contact losses. The insulating section is made from PTFE, a high-quality insulating material with excellent electrical and thermal properties, and is protected by a special elastomer hood to help prevent water and moisture ingress.

Main features:

• Original Grazioli replacement part
• Part number: CNUHF01
• Type: UHF connector for Grazioli antennas
• True impedance: 50 Ohms
• Operating frequency: up to 500 MHz
• Designed power handling: up to 5 kW CW continuous at 30 MHz
• CW614N nickel-plated brass body
• 24K gold-plated centre pin
• 4-fin insulator for improved centring and contact reliability
• PTFE insulation
• Elastomer outer protection against water and humidity
• Compatible with Grazioli FE10V, G-Max, HW10V, MV6, MV7, HW20V and FE62V antenna models
