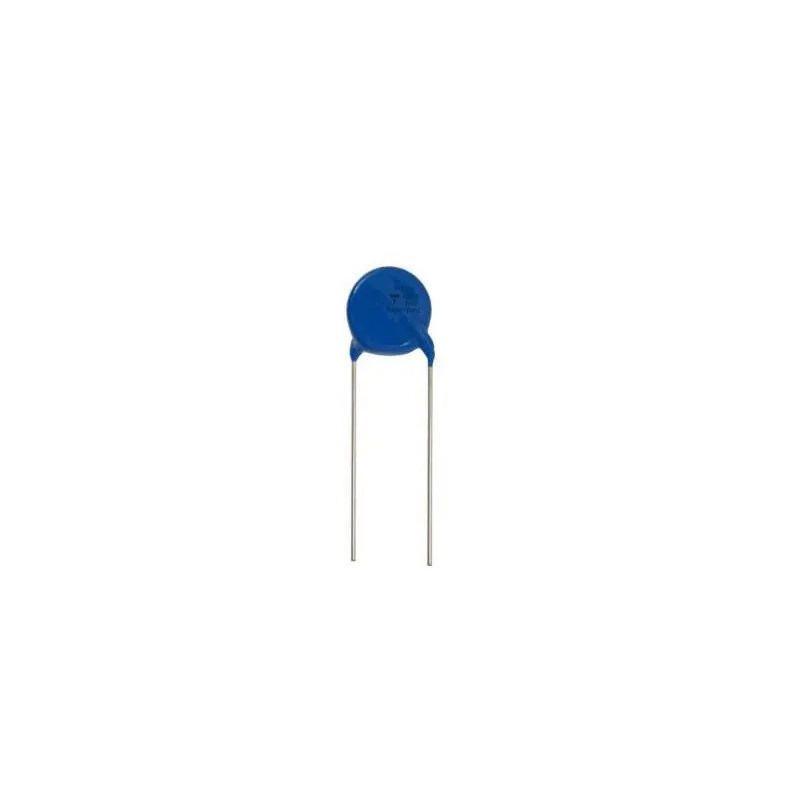

TDK 33 pF 6 kV ±5% Ceramic Disc Capacitor – CC45SL3JD330JYGNA
€0.53
High-voltage ceramic disc capacitor with a capacitance of 33 pF, ±5% tolerance and 6 kV DC rated voltage. It features long radial leads, low dissipation and high insulation resistance.
Security policy
Delivery policy
The TDK CC45SL3JD330JYGNA is a CC45-series ceramic disc capacitor designed for commercial high-voltage and high-frequency applications.
It features a nominal capacitance of 33 pF, a tolerance of ±5% and a rated operating voltage of 6 kV DC. Its low dissipation factor helps reduce internal heating in high-voltage and high-frequency circuits.
The radial leaded construction is suitable for through-hole PCB installation. Its approximately 25 mm long leads provide flexibility during assembly and allow the component to be positioned away from the circuit board when necessary.
Typical applications include power-supply snubber protection, filtering, decoupling and other compatible high-voltage electronic circuits.
Main features
- Brand: TDK
- Part number: CC45SL3JD330JYGNA
- Series: CC45
- Type: ceramic disc capacitor
- Category: high voltage
- Capacitance: 33 pF
- Tolerance: ±5%
- Rated voltage: 6 kV DC
- Withstanding test voltage: 4.5 kV AC
- Temperature characteristic: SL
- Temperature coefficient: +350 to –1000 ppm/°C
- Minimum Q factor: 1000
- Minimum insulation resistance: 10,000 MΩ
- Operating temperature: –25°C to +125°C
- Mounting: through-hole
- Leads: long radial leads
- Lead length: approximately 25 mm
- Lead spacing: 7.5 ±1.5 mm
- Lead diameter: 0.60 ±0.05 mm
- Maximum body diameter: 7.5 mm
- Maximum thickness: 6 mm
- Polarity: non-polarised
- Soldering: hand or wave soldering
- Compliance: RoHS, lead-free and halogen-free
- Grade: commercial
- AEC-Q200 qualification: no
Recommended applications
- Power-supply snubber circuits
- High-voltage electronic circuits
- Filtering and decoupling
- Telecommunications equipment
- Measurement equipment
- Power supplies and converters
- High-frequency circuits
- Electronic equipment repairs
Important note
The 6 kV rating applies to direct current. The 4.5 kV AC withstand test value must not be interpreted as a continuous AC operating voltage.
This component is not an X- or Y-rated safety capacitor. It must not be connected directly across mains conductors or between mains and protective earth where an approved safety capacitor is required.
High-voltage installations must provide appropriate insulation distances, safe discharge arrangements and suitable protection measures.
