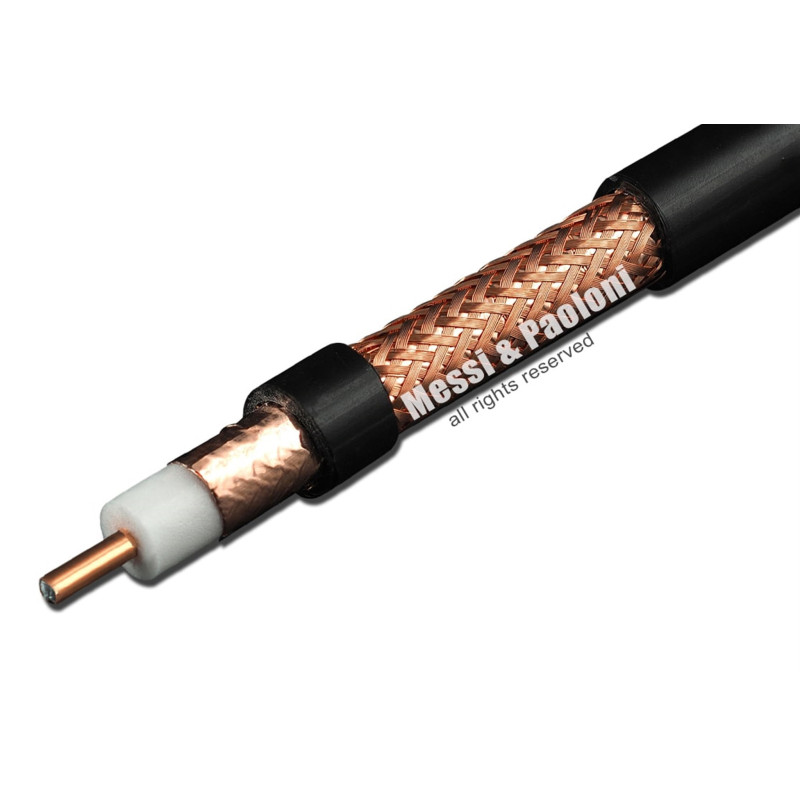

AIRBORNE 10 /.400" Low-loss coaxial cable

WHY CHOOSE THIS CABLE:

• Best attenuation tested in a 10,3mm coax , boosting 19dB/100m at 2400 Mhz.

• Suitable for direct burial and totally waterproof.

• Also perfect for outdoor use and weatherproof.

• Superlative robustness and resistance thanks to the PE tearproof sheath.

• Incredible lightness: 45% lighter than average 10,3mm cable.

• Super thick braid of 192 wires that leads to a dramatic reduction of the background noise.

*For very tight bends and rotor antennas, choose ULTRAFLEX 10 or HYPERFLEX 10.

ATTENTION: To install the connectors in polyethylene cables like this one, additional procedures must be carried out, as it has a more robust sheath than PVC ones. Infact it requires two longitudinal cuts to easily insert the component between the braid and the sheath without breaking it (alternately you can soften the polyethylene sheath using a hair dryer).

Sold to the meter

Attenuation @ 20°C

Frequency dB/100m dB/100ft

1.8 MHz 0.65 / 0.20

3.5 MHz 0.85 / 0.26

7.0 MHz 1.08 / 0.33

10 MHz 1.20 / 0.37

14 MHz 1.39 / 0.42

21 MHz 1.75 / 0.53

28 MHz 1.93 / 0.59

50 MHz 2.45 / 0.75

100 MHz 3.52 / 1.07

144 MHz 4.20 / 1.28

200 MHz 5.0 / 1.52

400 MHz 7.2 / 2.19

430 MHz 7.6 / 2.32

800 MHz 10.4 / 3.17

1000 MHz 11.8 / 3.6

1296 MHz 13.6 / 4.15

2400 MHz 19.2 / 5.85

3000 MHz 21.6 / 6.58

4000 MHz 25.6 / 7.80

5000 MHz 29.2 / 8.9

6000 MHz 32.8 / 10.0

7000 MHz 35.6 / 10.85

8000 MHz 38.6 / 11.77

10,000 MHz 44.6 / 13.59

12,000 MHz 50.2 / 15.30
