The Infineon BAT15-02LS, supplied under the full ordering reference BAT1502LSE6433XTMA1, is a low-barrier Schottky diode designed for radio-frequency and microwave circuits.

Its low forward voltage, extremely low junction capacitance and reduced parasitic inductance make it suitable for RF mixers, detectors, demodulators and power-detection circuits, including applications operating at frequencies up to 12 GHz.

The device features an integrated on-chip guard ring for overvoltage protection, providing increased robustness in sensitive RF circuits. It has a capacitance of approximately 0.23 pF at 0 V and 1 MHz and a typical inductance of only 0.2 nH.

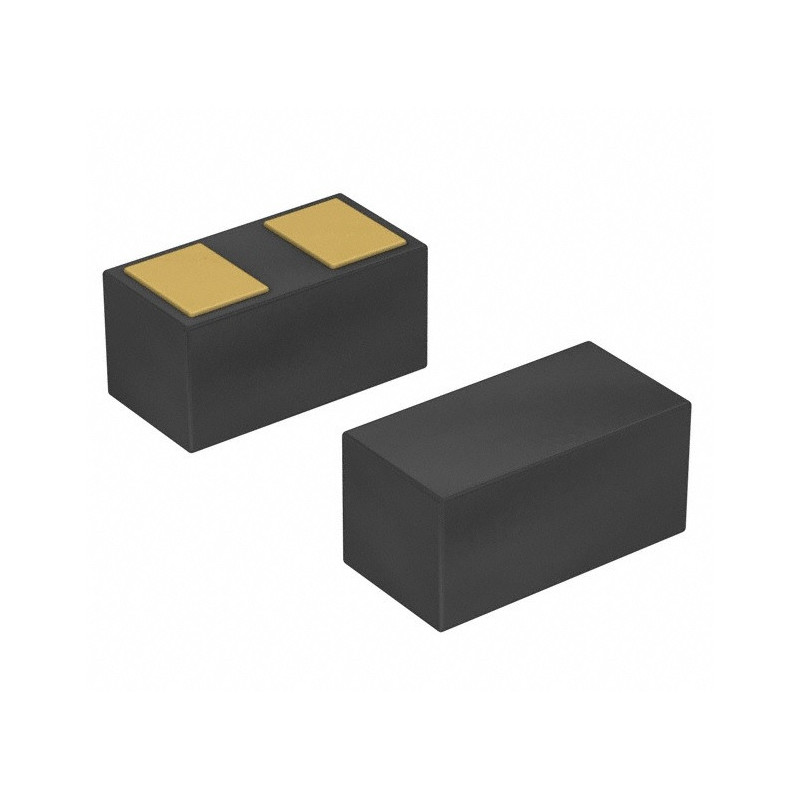

The BAT15-02LS is supplied in an ultra-compact 0201 (0603 metric) package for surface mounting in equipment where PCB space and parasitic elements must be minimised.

Main features

• Manufacturer: Infineon Technologies
• Full ordering reference: BAT1502LSE6433XTMA1
• Component designation: BAT15-02LS
• Type: RF Schottky diode
• Configuration: single diode
• Semiconductor material: silicon
• Maximum reverse voltage: 4 V
• Maximum forward current: 110 mA
• Maximum power dissipation: 100 mW
• Low forward voltage: approximately 0.25 V typical
• Capacitance: approximately 0.23 pF at 0 V/1 MHz
• Typical inductance: 0.2 nH
• Resistance: approximately 10 Ω at 50 mA/1 MHz
• Application frequency: up to 12 GHz
• Maximum junction temperature: +150°C
• Mounting type: surface mount
• Supplier package: PG-TSSLP-2-3
• Standard package size: 0201/0603 metric
• Number of terminals: 2
• Integrated protection: on-chip overvoltage guard ring
• Packaging: cut tape or reel

Recommended applications

• RF mixers
• RF detectors and demodulators
• RF power and signal-level detectors
• Microwave circuits operating up to 12 GHz
• Telecommunications equipment
• Radio receivers and transmitters
• Amateur-radio equipment
• RF test and measurement instruments
• Radar and wireless communication circuits
• Repair of compatible RF modules

Important note

The BAT15-02LS is specifically designed for radio-frequency signals. It should not be confused with a power Schottky diode or used as a general-purpose power rectifier.

Its maximum reverse voltage is only 4 V, and its maximum power dissipation is 100 mW. These limits must not be exceeded.

The 0201 package is extremely small, measuring approximately 0.6 × 0.3 mm. Installation and replacement require suitable SMD microsoldering equipment, controlled temperature and electrostatic-discharge protection.

Always verify the polarity, PCB footprint and electrical limits stated in the datasheet before installation.
