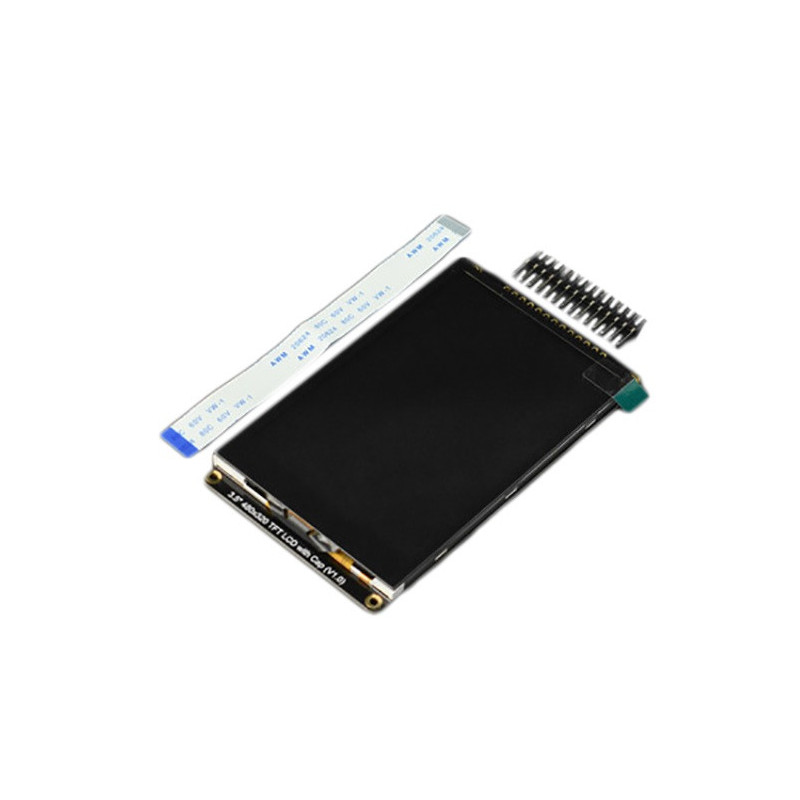

DFRobot DFR0669 3.5" 480x320 Capacitive TFT LCD Display SPI with MicroSD

The DFRobot DFR0669 is a 3.5-inch IPS TFT LCD display module with a capacitive touch panel, designed for electronic projects requiring a compact and functional full-colour graphical interface.

With 480x320 pixel resolution, 16-bit RGB565 colour depth and ILI9488 graphic driver, this module can display menus, graphics, buttons, images and visual information in microcontroller-based projects.

The touch panel uses the GT911 chip and supports up to 5 capacitive touch points, allowing more intuitive and interactive user interfaces. The main display communication is handled through SPI, making connection to compatible controllers easier.

The module can be powered from 3.3V to 5.5V and is suitable for platforms such as Arduino, ESP32, ESP8266, FireBeetle, boards with compatible GDI interface and other development systems, provided the pinout and communication logic are respected.

In addition to the display and capacitive touch panel, the module includes a MicroSD slot, allowing images or graphic resources to be used from a memory card, depending on the software and library used.

It is a practical solution for IoT projects, human-machine interfaces, control panels, DIY consoles, monitoring systems, automation, prototypes and applications requiring a colour touchscreen display.

Main features

Capacitive TFT LCD module
Manufacturer / brand: DFRobot
Part number: DFR0669
Series / range: Fermion
Display type: colour IPS TFT LCD
Screen size: 3.5"
Resolution: 480 x 320 pixels
Touch type: capacitive
Maximum touch points: up to 5 points
Display driver chip: ILI9488
Touch chip: GT911
Communication: SPI
Additional interface: GDI, for compatible controllers
Colour depth: 16-bit RGB565
Typical brightness: 300cd/m²
IPS viewing angle: 120°
Display area: 73.44 x 48.96mm
Module size: 55.50 x 95.00mm
Mounting hole diameter: 2mm
Mounting hole pitch: 50mm and 90mm
Supply voltage: 3.3V to 5.5V
Typical full-screen consumption: 48.1mA
Minimum operating temperature: -20°C
Maximum operating temperature: +70°C
MicroSD slot: yes
Listed compatibility: Arduino, ESP32, ESP8266, FireBeetle M0 and compatible controllers
Listed library: DFRobot_GDL, according to manufacturer documentation
Listed certifications: CE and RoHS
Main application: touch graphical interface for electronic projects
Suitable for prototyping, development and DIY project integration

Main pins / connections

VCC: positive supply
GND: ground / negative
SCLK: SPI clock
MOSI: SPI data from controller to display
MISO: SPI data from display to controller
CS: screen chip select
RES: reset
DC: data/command select
BL: backlight control
SCL: capacitive touch clock
SDA: capacitive touch data
INT: capacitive touch interrupt
SDCS: MicroSD card chip select

Manufacturer listed package contents

DFRobot DFR0669 3.5" 480x320 capacitive TFT LCD module
2.54mm 14-pin single row header
0.5mm 18-pin FPC cable, 10cm

Recommended applications

Arduino projects
ESP32 and ESP8266 projects
Graphical interfaces for IoT
Touch control panels
DIY interactive consoles and menus
Monitoring systems
Automation and equipment control
Data display projects
Displays for sensors and dataloggers
Compact human-machine interfaces
Applications using images from MicroSD card
Electronic prototypes with colour display
Educational projects and microcontroller development

Important note

Before use, always confirm the supply voltage, pinout, logic levels, software library, microcontroller compatibility, SPI interface, capacitive touch wiring and total system current consumption.

The DFRobot DFR0669 is a development and integration module, not a standalone finished device. Correct operation requires connection to a compatible controller and suitable programming.

Use of the MicroSD slot depends on correct software, library and wiring. The MicroSD card is not included unless expressly stated otherwise.

Before final installation, it is recommended to bench-test the module, check cable orientation, confirm the pinout and avoid incorrect wiring, as this may damage the display, touch panel or controller being used.
