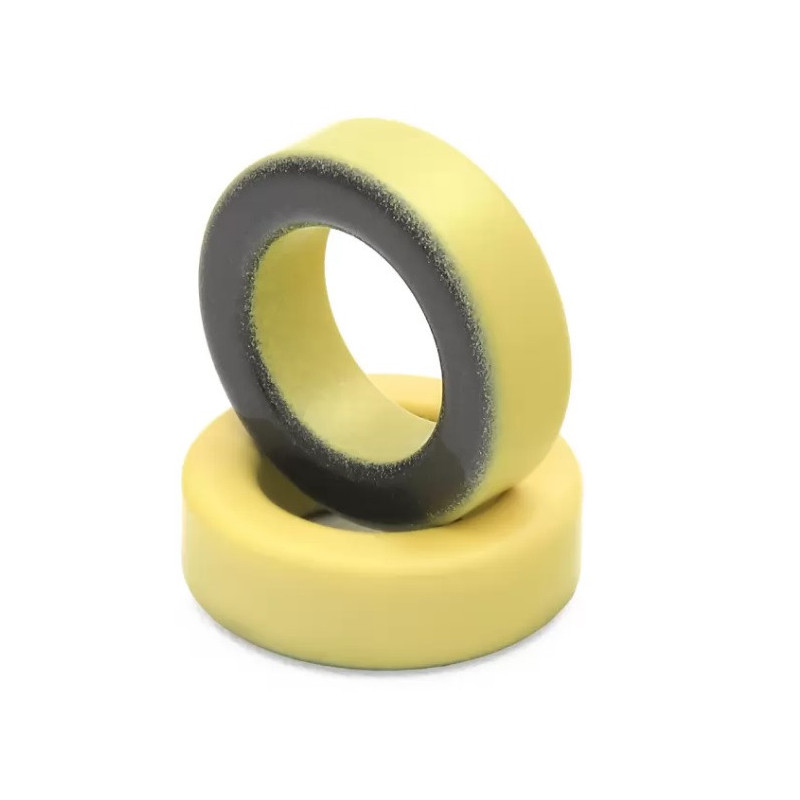

T106-6 Iron Powder Toroidal Core

The T106-6 is a toroidal core made from Mix 6 carbonyl iron powder, developed for radio frequency applications and the construction of inductors, filters, and RF transformers. It is a suitable choice for electronic projects where good high-frequency performance is needed together with a larger physical size for more turns or increased handling compared with smaller cores.

This model has an initial permeability µi of 8.5, an AL value of 116 µH at 100 turns, and a stated frequency range of 3 to 40 MHz. Its dimensions are 26.9 mm outer diameter, 14.5 mm inner diameter, and 11.1 mm height. The stated color code for this core is yellow/clear.

Mix 6 material is designed to provide high Q up to 40 MHz, is widely used in RF communication applications, and is also suitable for moderate band transformers from 200 to 400 MHz.

Features:

• Model: T106-6
• Material: Mix 6
• Carbonyl iron powder material
• Color: yellow / clear
• Frequency range: 3 - 40 MHz
• High Q up to 40 MHz
• Initial permeability: µi 8.5
• AL value (100 turns): 116 µH
• Outer diameter: 26.9 mm
• Inner diameter: 14.5 mm
• Height: 11.1 mm
• Suitable for RF and high-frequency applications
• Suitable for moderate band transformers from 200 to 400 MHz
