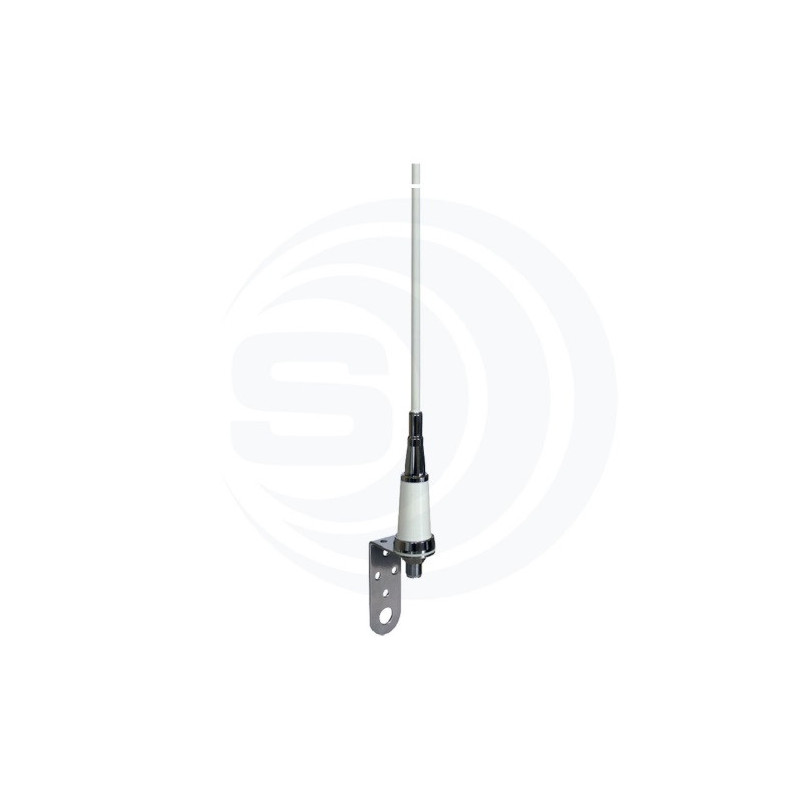

SIRIO SB 1 S - VHF 1/2 wave marine antenna

VHF 1/2 wave marine antenna with loading coil and solid fiberglass rod. Length: 1 meter. Can be mounted on the side of the cabin or at the top of the mast. Includes a 90° angled stainless steel M1 bracket. The base of the antenna has a female PL connector (SO239) for connecting the coaxial cable to the radio (cable not included). Compatible with Automatic Identification System (AIS). Frequency range: 155 to 162 MHz. No tuning or ground plane required. Maximum recommended power: 100 Watts. Gain: 2.15 dBi. All metal parts of the antenna are DC shorted to prevent electrical discharges and static noise.

Type: 1/2" Nautical VHF Fiber Antenna with Loading Coil

Radiation: Omnidirectional

Polarization: Linear Vertical

E-Plane Radiation Angle: Beamwidth @ -3dB = 60º

Impedance: 50 Ohms

Degree Radiation Angle: 23º

H-Plane Radiation Angle: 360º

Ground Plane: Not Required

A-Bandwidth: 7 MHz @ SWR < 2

A-Frequency Range: 155 - 162 MHz

Compatible Systems: VHF Nautical Band, AIS-162MHz

A-Range Gain: 2.15 dBi Ref. Lambda 1/4"

A-Power Handling: 100 Watts

DC Protection: Short-circuited to ground

Cable/Length/Connector: Not applicable

Connector A: Female PL

Color: White

Body: Fiberglass

Materials: Chrome-plated brass, fiberglass, nylon

Bracket: M-1 included

Dimensions L: 95.5 cm

Protection Rating: IP66

VHF Marine: Yes

AIS-162MHz: Yes
