The Amphenol RF 095-902-604M015 is a compact RF coaxial cable assembly designed to interconnect equipment, modules and antennas using RP-SMA and AMC4 connections.

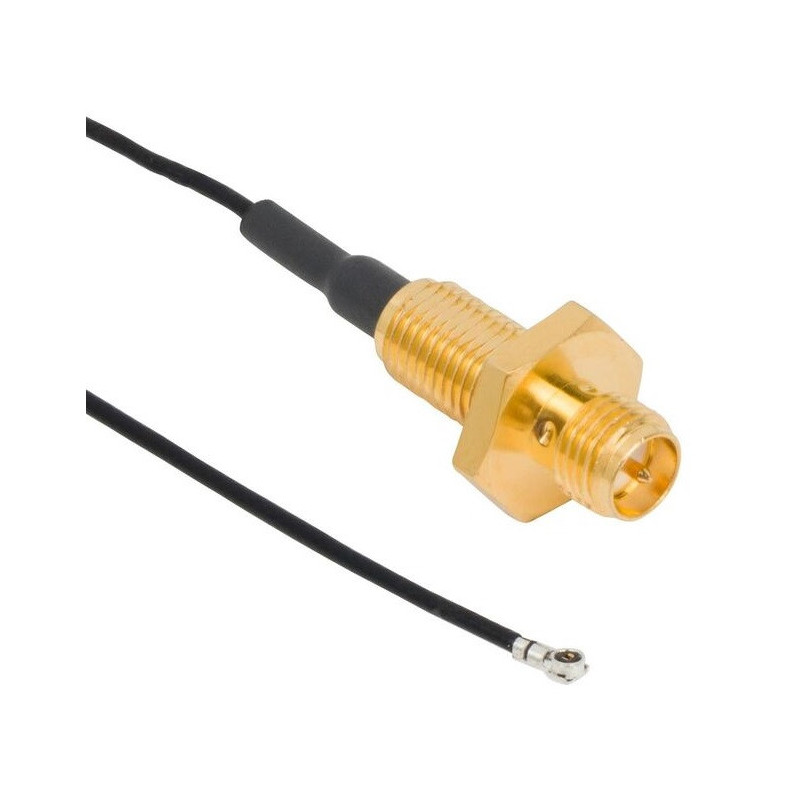

One end of the cable has an RP-SMA bulkhead jack for panel mounting, with front-side nut, allowing the connector to be fixed to an enclosure, panel or device. The other end includes an AMC4 right-angle plug, suitable for connection to compatible electronic boards, RF modules and compact devices.

With 150mm length, 1.13mm coaxial cable and 50Ω impedance, it is suitable for short RF connections where the signal must be routed between an external antenna or panel connector and an internal PCB.

The listed maximum frequency is 6GHz, making this cable suitable for a range of RF applications including wireless systems, IoT, Wi-Fi, communication modules, telemetry equipment, data networks and other compatible projects within the specified limits.

The black construction and listed IP67 protection make it suitable for applications requiring improved dust and water protection, provided the installation and mating components are also suitable.

Main features

RF coaxial cable assembly
Manufacturer / brand: Amphenol RF
Manufacturer reference: 095-902-604M015
Product type: RF coaxial cable assembly
Style / connection: AMC4 to RP-SMA
Connector 1: RP-SMA bulkhead jack / SMA jack, panel mount
Connector 1 mounting type: panel mount
Connector 1 mounting feature: bulkhead, front-side nut
Connector 2: AMC4 right-angle plug
Connector 2 mounting type: free hanging / in-line
Length: 150mm
Equivalent length: 5.906"
Cable type: 1.13mm coaxial cable
Cable impedance: 50Ω
Connector impedance: 50Ω
Overall impedance: 50Ω
Maximum frequency: 6GHz
Colour: black
Listed protection: IP67 — dust tight and waterproof, according to product specification
Operating temperature: -40°C to 90°C
Product status: active
Main application: RF connection between panel RP-SMA connector and AMC4 micro connector
Suitable for compact RF systems, wireless modules and compatible external antennas

Recommended applications

Connecting an external antenna to an RF module
IoT equipment with AMC4 connector
Compatible LoRa, Wi-Fi, LTE, GNSS or RF modules
Enclosures and devices with panel RP-SMA connector
Wireless communication systems
Telemetry and remote monitoring
Compact RF projects
Internal conversion between AMC4 micro connector and RP-SMA output
External antenna integration in electronic equipment
Repair or replacement of compatible RF cable assemblies

Important note

Before purchase, always confirm the exact cable reference, connector type, RP-SMA polarity, AMC4 compatibility, required length, impedance, working frequency, panel mounting type and available internal space inside the equipment.

This cable uses RP-SMA, which must not be confused with standard SMA. The polarity and centre contact type should be checked before assembly to avoid incompatibility with antennas, adapters or equipment.

The AMC4 connector is a specific RF micro connector and should not be assumed compatible with similar connectors such as U.FL, I-PEX or MHF without prior technical confirmation.

The IP67 rating depends on correct installation and compatibility of the remaining installation components. This item corresponds only to the Amphenol RF 095-902-604M015 coaxial cable assembly. Antennas, RF modules, enclosures, additional nuts, adapters and other accessories are not included unless expressly stated otherwise.
