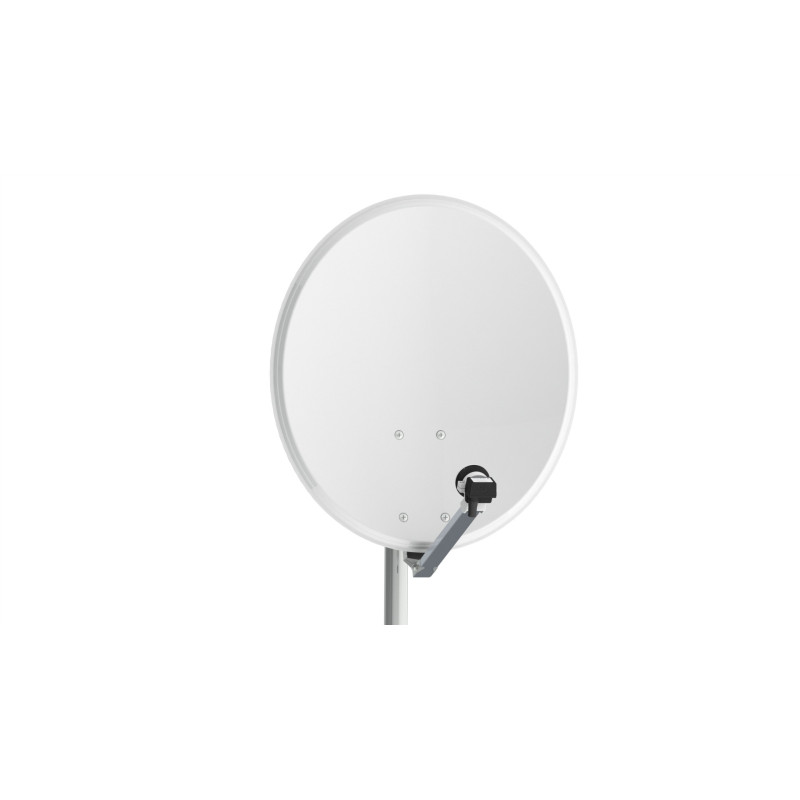

The QA 60 cm is an offset satellite dish designed for Ku-band satellite television reception.

The reflector is made from electro-galvanised steel sheet, providing a robust solution for domestic and professional satellite reception installations. The mounting structure is metal and the offset design positions the LNB away from the centre of the reflector.

Although commercially described as a 60 cm dish, the reflector dimensions are approximately 510 × 570 mm, with a 327 mm focal distance and 0.64 F/D ratio.

Listed efficiency is above 70%, with gain of 33.5 dBi at 10.70 GHz, 34.8 dBi at 11.70 GHz and 35.4 dBi at 12.75 GHz.

The dish has a 28° offset angle, allowing correct alignment towards the required satellite using the azimuth and elevation adjustments of the installation.

Main features

Model / series: QA
Type: offset satellite dish
Commercial size: 60 cm
Reflector dimensions: 510 × 570 mm
Focal distance: 327 mm
F/D ratio: 0.64
Efficiency: above 70%
Reflector material: electro-galvanised steel sheet
Listed thickness: 0.60 / 1 mm
Structure: metal
Offset angle: 28°
Gain at 10.70 GHz: 33.5 dBi
Gain at 11.70 GHz: 34.8 dBi
Gain at 12.75 GHz: 35.4 dBi
Main application: Ku-band satellite television and signal reception.

Recommended applications

Satellite television reception
Domestic SAT installations
Compatible DVB-S and DVB-S2 receivers
Compatible universal Ku-band LNBs
Wall, mast or suitable satellite-dish mounting installations
Satellite reception where local coverage is suitable for this dish size

Important note

Before installation, always confirm the required satellite, local coverage, recommended dish size, LNB type, mounting bracket, alignment, coaxial cable and other required accessories.

The 60 cm size is a commercial designation; the listed reflector dimensions are 510 × 570 mm.

Actual performance depends on satellite footprint, geographical location, alignment, weather conditions, LNB quality, coaxial cable and connectors.

The LNB, wall bracket, coaxial cable, connectors and receiver should not be assumed to be included, as those components are listed separately in kits using the same dish
