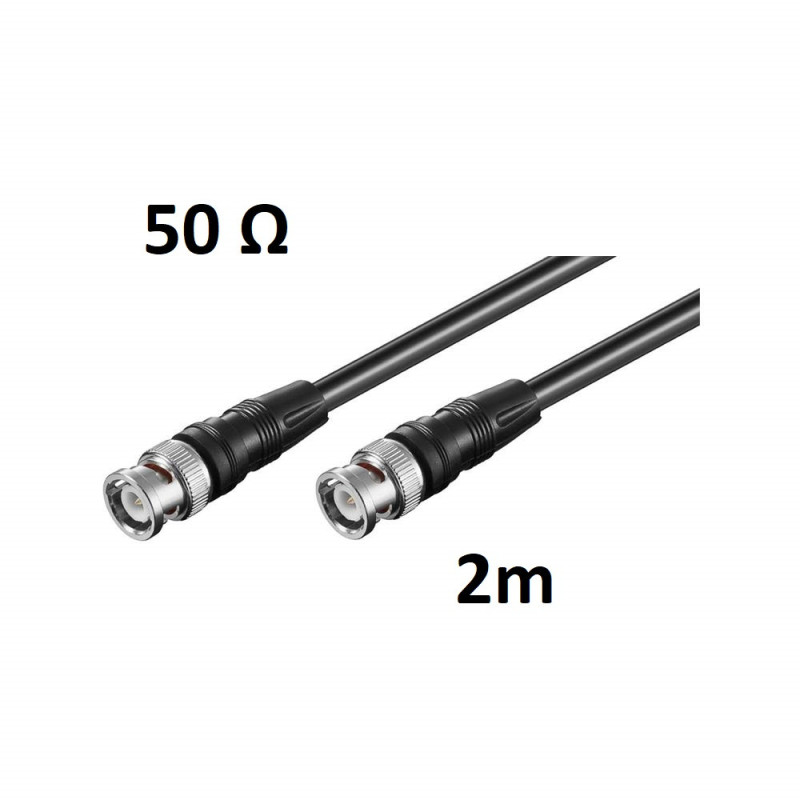

The BNC-to-BNC RG58 Coaxial Cable is a ready-to-use solution for connecting equipment fitted with 50 Ω BNC sockets.

It features a BNC male connector at each end, providing a quick and secure connection through the conventional BNC push-and-turn locking system.

The RG58 coaxial cable has a characteristic impedance of 50 Ω and features double shielding, consisting of aluminium foil and braiding, to help reduce electromagnetic interference affecting the signal. Its inner conductor is AWG 24 CCS copper-clad steel, while the connectors feature nickel-plated contacts with gold-plated pins.

With a length of 2 metres, the cable is suitable for connections between devices on a workbench, in an amateur radio station or as part of a technical installation. It can be used with radio equipment, receivers, scanners, measuring instruments, antennas and compatible Thin Ethernet coaxial networks.

Main features

• Type: coaxial connection cable
• Cable type: RG58
• Impedance: 50 Ω
• Length: 2 m
• Connector 1: BNC male
• Connector 2: BNC male
• Configuration: BNC male to BNC male
• Shielding: double, aluminium foil and braiding
• Shielding coverage: approximately 35%
• Inner conductor: AWG 24 CCS copper-clad steel
• Conductor cross-section: 0.196 mm²
• Conductor composition: 1 × 0.50 mm
• Inner insulation: polyethylene (PE)
• Jacket material: PVC
• Outside diameter: 5.0 ± 0.2 mm
• Capacitance: 54 ± 5 pF/m
• Conductor resistance: 500 ± 10 Ω/km
• Contacts: nickel-plated with gold-plated pins
• Colour: black
• Compliance: RoHS and REACH

Recommended applications

• Radio communication equipment
• Connections in amateur radio stations
• Receivers and scanners
• Test and measuring instruments
• Oscilloscopes and frequency counters
• Signal generators
• RG58-compatible antenna connections
• Microphones and equipment with BNC sockets
• Thin Ethernet, 10BASE2 or CheaperNet coaxial networks
• Signal transmission in 50 Ω systems

Important note

This cable has a characteristic impedance of 50 Ω. Before use, confirm that the equipment and BNC connections are also rated for 50 Ω, especially in video systems, where 75 Ω BNC cables and connectors are also commonly used.

The manufacturer states that this assembled cable is not suitable for cutting and soldering different connectors. For customised cables, use RG58 coaxial cable sold by the metre and connectors specifically designed for assembly.

Signal loss increases with frequency and cable length. Confirm that RG58 is suitable for the intended frequency, power level and application.
