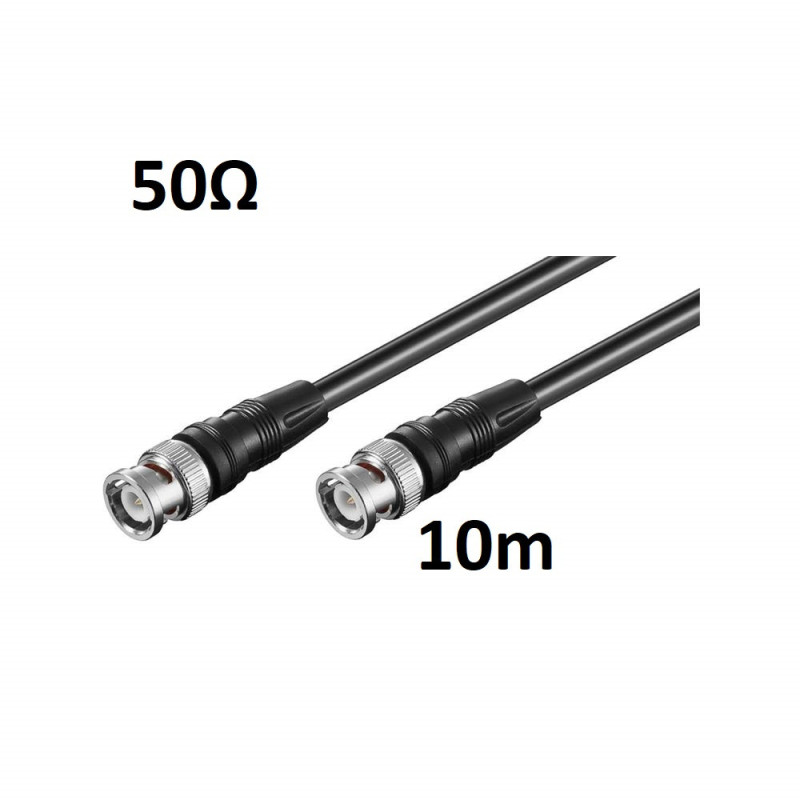

The BNC-to-BNC RG58 Coaxial Cable connects equipment fitted with 50 Ω BNC sockets, providing a ready-to-use solution for radio-frequency and data-signal transmission.

It features a BNC male connector at each end, providing a quick and secure connection through the conventional BNC push-and-turn locking system.

The RG58 coaxial cable has a characteristic impedance of 50 Ω and features double shielding, consisting of aluminium foil and braiding. This construction helps reduce electromagnetic interference affecting the transmitted signal.

Its inner conductor is AWG 24 CCS copper-clad steel. The connectors feature nickel-plated contacts with gold-plated pins.

With a length of 10 metres, the cable is suitable for installations requiring a greater distance between devices. It can be used with radio equipment, receivers, scanners, measuring instruments, antennas and compatible Thin Ethernet coaxial networks.

Main features

• Type: coaxial connection cable
• Cable type: RG58
• Impedance: 50 Ω
• Length: 10 m
• Connector 1: BNC male
• Connector 2: BNC male
• Configuration: BNC male to BNC male
• Shielding: double, aluminium foil and braiding
• Shielding coverage: approximately 35%
• Inner conductor: AWG 24 CCS copper-clad steel
• Conductor cross-section: 0.196 mm²
• Conductor composition: 1 × 0.50 mm
• Inner insulation: polyethylene (PE)
• Jacket material: PVC
• Outside diameter: 5.0 ± 0.2 mm
• Capacitance: 54 ± 5 pF/m
• Conductor resistance: 500 ± 10 Ω/km
• Contacts: nickel-plated with gold-plated pins
• Colour: black
• Approximate cable weight: 30 ± 2 g/m
• Compliance: RoHS and REACH

Recommended applications

• Radio communication equipment
• Receivers and scanners
• Test and measuring instruments
• Oscilloscopes and frequency counters
• Signal generators
• RG58-compatible antenna connections
• Microphones and equipment with BNC sockets
• Thin Ethernet, 10BASE2 or CheaperNet coaxial networks
• Signal transmission in 50 Ω systems

Important note

This cable has a characteristic impedance of 50 Ω. Before use, confirm that the equipment and BNC connections are also rated for 50 Ω, especially in video systems, where 75 Ω BNC cables and connectors are also commonly used.

Due to its 10-metre length, attenuation must be considered in radio-frequency applications. RG58 losses increase with frequency, so this cable may not be the most suitable option for VHF, UHF or higher-frequency transmission when low loss is essential.

The manufacturer states that this assembled cable is not suitable for cutting and soldering different connectors. For customised cables, use coaxial cable sold by the metre and connectors specifically designed for assembly.
